Dual Ball Bearing Wheels for Sliding Gate – Angle Iron Track – No Bracket – 80 to 200mm

Code:

Dual Ball Bearing Wheel to suit Angle Iron Track.

Fully Galvanised.

Sizes from 80mm to 200mm

Capacity in Pairs : 500kg – 1300kg

For more information click here

For more information click here

Description

Ball Bearing Wheel to suit Angle Iron Track.

These are bracketless wheels but are supplied with a galvanised fixing bolt.

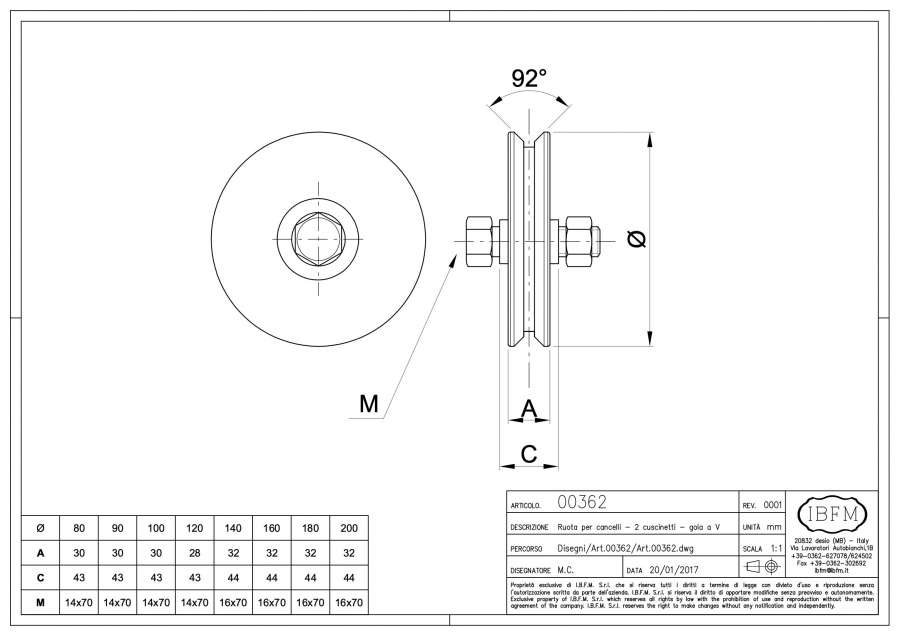

For detail on sizes see technical drawing.



Wheel Diameter Load Capacity per Pair
80mm 800kg
100mm 850kg
120mm 900kg
140mm 1100kg
180mm 1300kg
200mm 1300kg

Additional Information

Weight N/A
Dimensions N/A
Diameter

100mm, 120mm, 140mm, 160mm, 180mm, 200mm, 80mm
